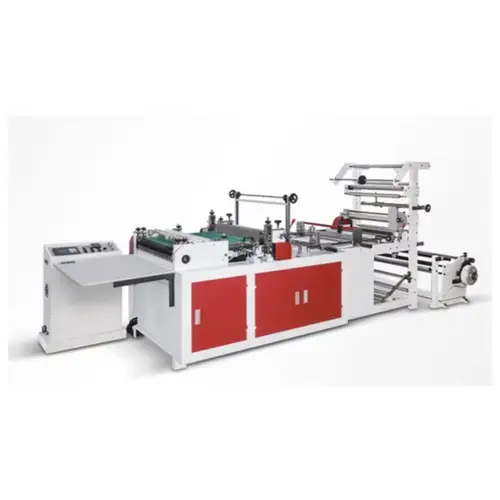

Side Sealing Bag Making Machine

Side Sealing Bag Making Machine

The Side Sealing Bag Making Machine is engineered for the heat sealing and cutting of bags crafted from materials like BOPP, PP, and PE. It excels in the production of flower bags, triangle bags, and candy bags.

Notable features comprise:
– An inverter-controlled motor that manages the machine’s speed.
– A touch screen interface that allows for adjustments of both machine speed and bag length.
– Integration of a photocell for the production of both printed and unprinted bags.
– A built-in hole punch mechanism.
– An optional folding device.

This machine is compatible with various materials, including BOPP, PP, PE, POF, and CPP, making it adept at heat sealing and cutting. It is capable of creating a diverse range of products, such as clothing bags, sock bags, towel bags, bread bags, ornament bags, underwear bags, stationery bags, bags for electric components, and bags tailored for bamboo products and woodworking items.

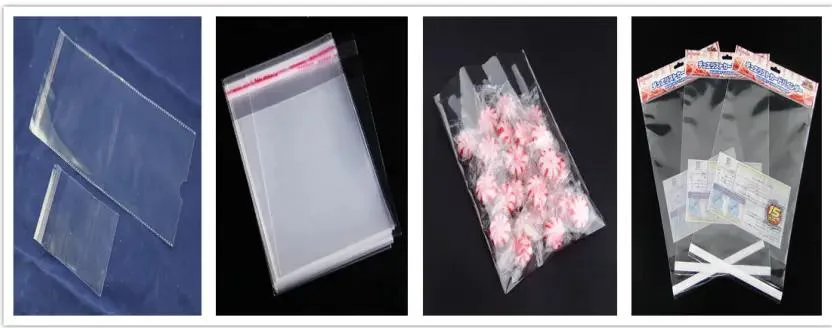

BOPP bag

Main Technical Variables:

Model	RQL-600	RQL-800	RQL-1000	RQL-1200	RQL-1400	RQL-1500
Width of sealing & cutting	580mm	750mm	950mm	1150mm	1350mm	1450mm
Length of sealing &cutting	900mm	900mm	900mm	900mm	1000mm	1000mm
Speed of bag-making	40-180pc/min	40-180pc/min	40-180pc/min	40-150pc/min	40-150pc/min	40-150pc/min
Main motor	1.1kw	1.1kw	1.5kw	1.5kw	2.2kw	2.2kw
Weight	700kg	800kg	900kg	1000kg	1400kg	1500kg
Outline dimension	3.6*1.1*1.7M	3.6*1.2*1.7M	3.6*1.5*1.7M	3.6*1.6*1.7M	3.6*1.8*1.7M	3.6*1.9*1.7M
Kind of Bag	BOPP bag,Bread Bag,Garment Bag, stationery Bag,DVD Bag,CD bag
Bag of Material	HDPE、LDPE、PP、OPP、BOPP
Power Voltage	220V
Machine Working Time	24 hours * 7 days
Warranty	1 year

If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.

Our Main parts cooperator as following brand,but standard parts all made from China.
