Four Side Plastic Bag Making Machine

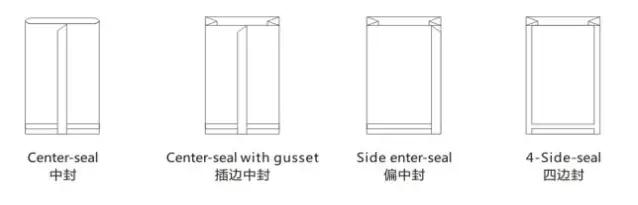

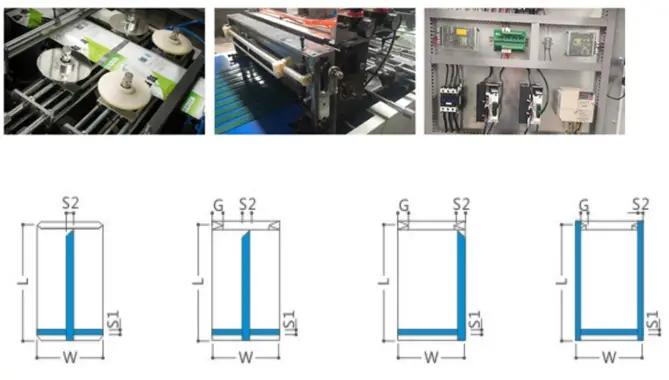

The Four Side Plastic Bag Making Machine is designed to manufacture middle sealing bags, four side bags, and edge sealing bags.
This machine operates using a centralized PLC control system, which enhances human-machine interaction and guarantees stable operation along with simplified maintenance. Users have the flexibility to switch effortlessly between Chinese and English interface languages.
It incorporates automatic tension control for unwinding, an EPC edge position controller, and an AC inverter that ensures consistent speed during the automatic feeding of materials. The system is equipped with an imported double servo motor for precise control of material movement.
The primary motor, which is responsible for the sealing and pressing actions, is equipped with an inverter. A PID control system manages the temperature of the sealing bars through non-contact automatic controls, with centralized settings available via the user interface.
Main Technical Variables:
| KDZD-C400 | |
| Max.Diameter of roll material | 600mm |
| Max.Width of roll material | 850mm |
| Max.Capacity | 160 section/min（pieces/mm） |
| Max.Mechanical speed | 45meter/min |
| Max.Bag-making Width | 400mm |
| Bag-making Length | 50-2400mm |
| Total Power | 25Kw |
| Weight | 4500kg |
| Outline Dimension | 10500x1700x1900mm |
If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.
Our Main parts cooperator as following brand,but standard parts all made from China.
