Four Colors Flexo Printing Machine
Four Colors Flexographic Printing Machine
Inquiry Basket
OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year
Product Details

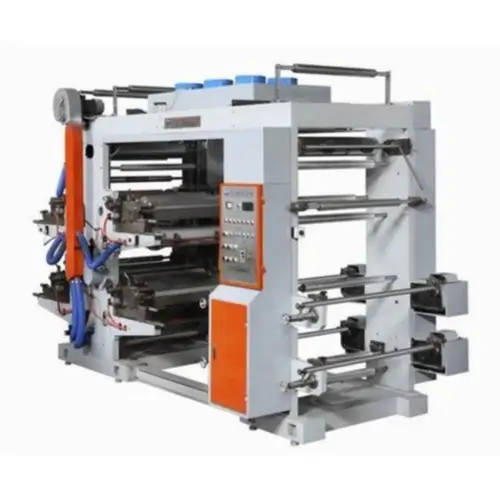

Four Colors Flexo Printing Machine
The Four Colors Flexo Printing Machine is specifically engineered for printing a range of packaging materials, including polyethylene and polypropylene bags, cellophane, and roll paper. It serves as an ideal option for producing paper packaging bags that can be used for various purposes, such as product packaging, supermarket carriers, vest bags, and apparel bags. This machine employs sensitization resin to create flexible printing plates.
Renowned for its efficient operation, this Flexo Printing Machine offers user-friendly functionality, accurate color registration, and adaptable start-up processes. It is equipped with a meter counter, allowing users to set specific print quantities, which prompts the machine to automatically stop once the required amount is achieved or when materials are depleted. Additionally, it features pneumatic adjustments for the printing cylinder, facilitating automatic ink stirring after elevation.
Flexo printing machine is used resin plate for printing texts and images on paper roll,plastic film roll,non woven roll,thermal paper roll etc. Both of water based ink and solvent ink can use.
| YT-M4600 | YT-M4800 | YT-M41000 | YT-M41200 | |
| Max.material width | 600mm | 800mm | 1000mm | 1200mm |
| Max.printing width | 560mm | 760mm | 960mm | 1160mm |
| Main motor power | 3kw | 3kw | 3kw | 3kw |
| Total power | 24kw | 24kw | 26kw | 26kw |
| Machine weight | 3100kgs | 3600kgs | 4000kgs | 4500kgs |
| Outline dimension | 4.8×1.6×2.3m | 4.8×1.8×2.3m | 4.8×2.0x2.3m | 4.8×2.2×2.3m |
| Printing colors | 4 colors (4+0,3+1,2+2) | |||
| Printing length | 220-1200mm | |||
| Machine speed | 100m/min | |||
| Printing speed | 70-80m/min | |||
| Material of Plate | Resin or Rubber | |||
| Constitution of Printing | Metal Anilox roller、Rubber roller 、Chrome plated roller、 printing Cylinder for printing length 400mm | |||
| Optional device :ceramic anilox roller,single doctor blade,ink pump; | ||||
| Working Principle | helical gears | |||
| Printing precision | +/-0.25mm | |||
| Thickness of Plate (including the glue) | 2.38mm | |||
| Machine Voltage | 380V 50/60HZ 3PH | |||
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
