Drinking straw making machine

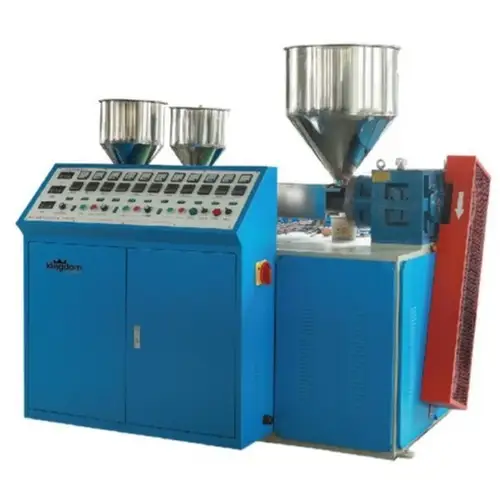

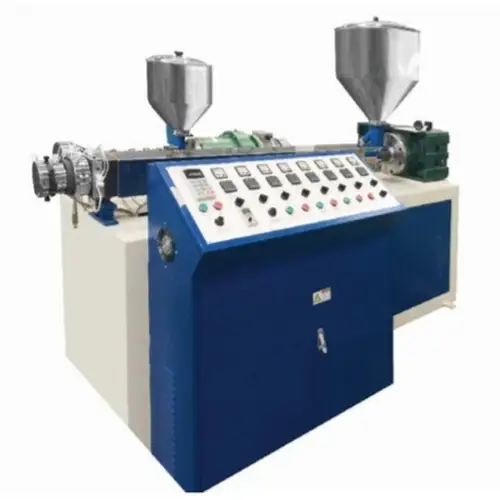

Drinking Straw Making Machine

The Drinking Straw Making Machine is designed to manufacture transparent, single-color straws from polypropylene (PP) and masterbatch as its key materials. The production process includes various stages such as melting, extrusion, shaping, cooling, pulling, and cutting. This machinery comprises the main body, tooling, a water cooling system, and a cutting device.

Quality Assurance:
The machine operates smoothly and quietly, thanks to precision-ground and hardened gears and bearings. The screw and barrel are constructed from Aluminum Chromolybdenum alloy steel and undergo stress relief treatment to enhance durability. Additionally, the die is subjected to nitrogen hardening to prolong its lifespan. Both the water tank and the cutting machine’s surface are crafted from #304 stainless steel. The screw of the main extruder is specifically designed to suit the plastic material in use.

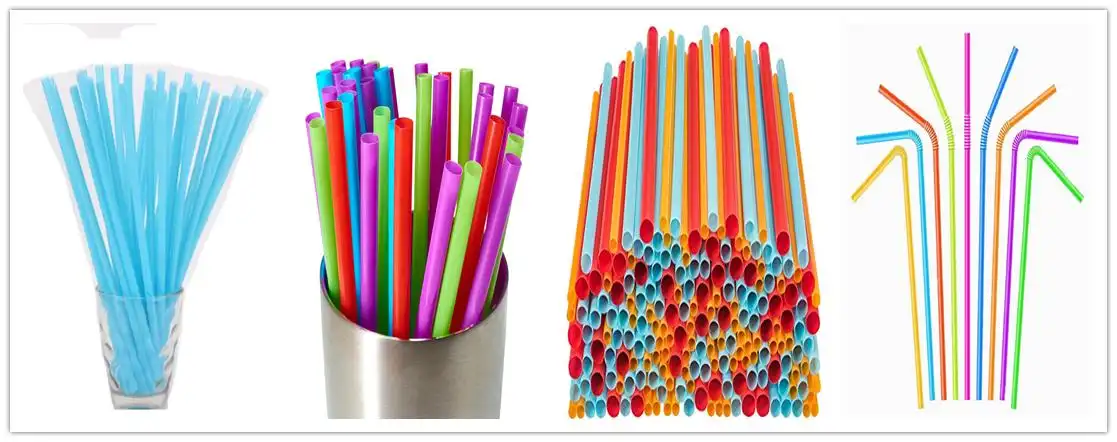

drinking straw

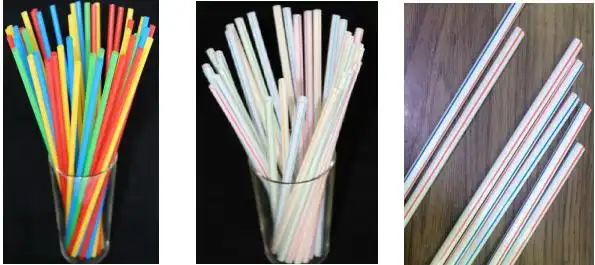

PP drinking straw

Model	KD-11	KD-12	KD-13
Colors	1color	2colors	3colors
Screw dia	50mm	50mm	50mm
Motor	11kw	11kw	11kw
Power	380v 50Hz	380v 50Hz	380v 50Hz
Output	25-35kg/hour	25-35kg/hour	25-35kg/hour
Product length	≥50mm	≥50mm	≥50mm
Product dia.	Φ4～12mm	Φ4～12mm	Φ4～12mm
Stripes	Straight	Straight or Helical	Straight or Helical
Product thickness	0.05-0.3mm	0.05-0.3mm	0.05-0.3mm
Weight	900kgs	1000kgs	1200kgs
Power Voltage	220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…)
Machine Working Time	24 hours * 7 days
Warranty	1 year

※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

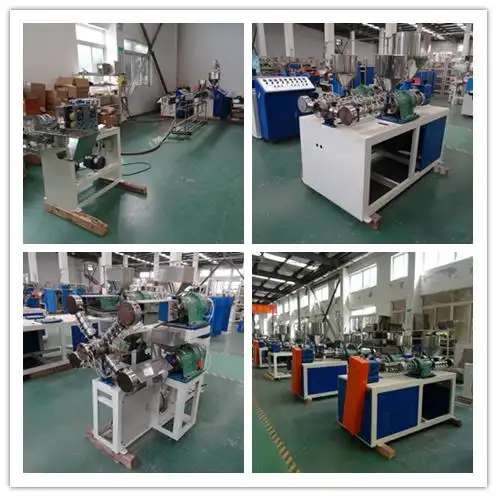

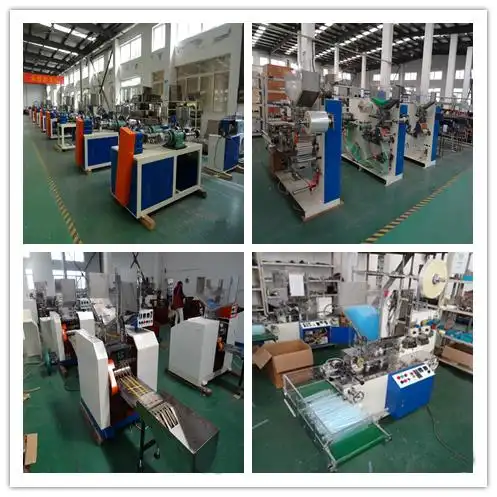

PP drinking straw machines warehouse

Shipment

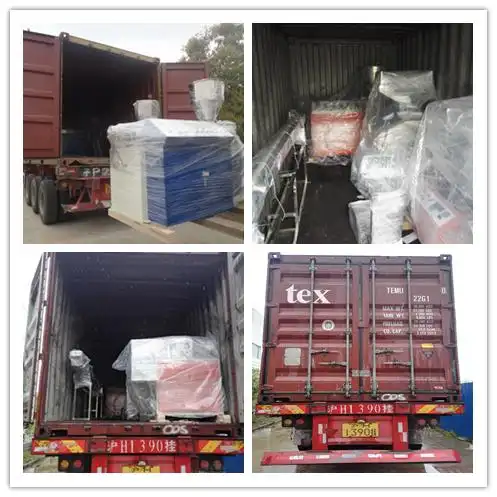

shipment of plastic bag machine

If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.

If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).

Loading Drinking Straw Machine Warehouse into container



instalment service

install machines in customer factory

Machine parts supplier

Our Main parts cooperator as following brand,but standard parts all made from China.

Material supplier

How To Find Polyethelene For Blown Film Extrusion.
Extrusion Film Extrusion use Polyethelene,such as

Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
