Double Layers Air Bubble Film Making Machine

Double Layers Air Bubble Film Making Machine – The Ultimate Solution for Packaging

The Double Layers Air Bubble Film Making Machine is specifically engineered for the production of 2-layer air bubble wrap film, utilizing Low Density Polyethylene (LDPE) and recycled LDPE materials. This machine is available in widths of 1200mm, 1500mm, 2000mm, 2500mm, and 3000mm, and it can manufacture bubble film in various colors, such as red, blue, and yellow. It operates on power options of 220V, 380V, 440V, or 480V. Its simple design and ease of use make it ideal for continuous operation throughout the day.

If you are considering acquiring a machine for producing air bubble film, please reach out for further information and tailored solutions.

Additionally, the flexibility of the Double Layers Air Bubble Film Making Machine enables the production of different bubble sizes and colors.

Investing in this machine is a prudent decision for businesses aiming to improve their packaging processes.

Utilizing the air bubble film making machine can lead to substantial reductions in packaging expenses while providing adequate protection for products.

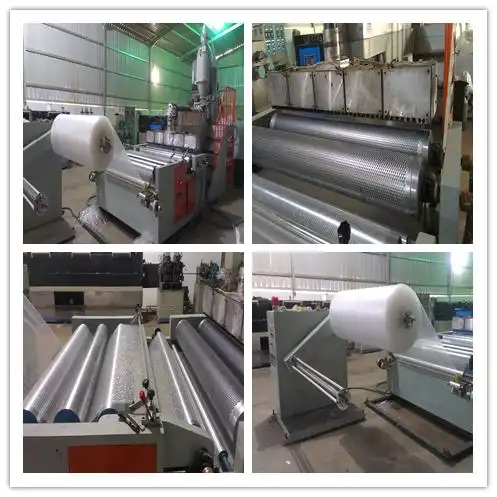

Double Layers Air Bubble Film Making Machine

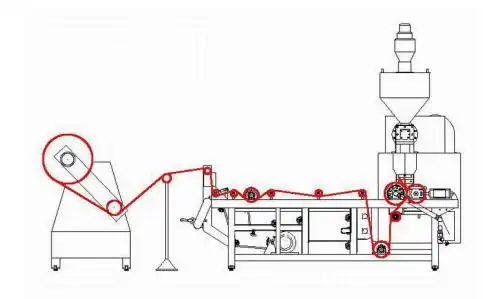

Double Layers Air Bubble Film Making Machine

Main Technical Variables:

Model	KDPE-1000	KDPE-1200	KDPE-1500
Raw Material	LDPE	LDPE	LDPE
Screw Diameter	φ65mm	φ75mm	φ90mm
Film Width	1000mm	1200mm	1500mm
Film Layer	Two Layers	Two Layers	Two Layers
Bubble Hole Diameter(mm)	6,8,10,12,14,16,18,20mm
Film Color	Transparent,Black,Red,White,blue…bag color changed by masterbatch
Output	50kg/h	60kg/h	70kg/h
Total Power	48kw	58kw	68kw
L/D Ratio Of Screw	28:1	28:1	28:1
Water Consumption	0.5m3/h	0.5m3/h	0.5m3/h
Machine Weight	3	4	5
Power Voltage	220V,380V,440V
Air Shaft Diamater	without paper core ,58mm,76mm
Machine Working Time	24 hours*7	24 hours*7	24 hours*7
Warranty	1 year
Technical Assistance	Engineers available to service machinery overseas

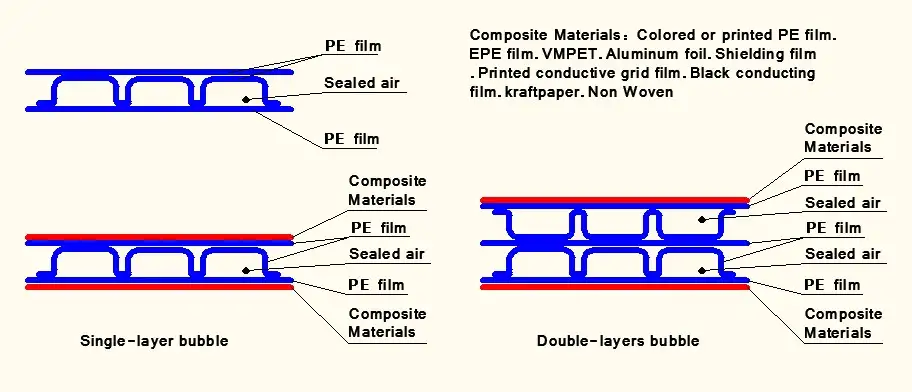

two layers air bubble film machines

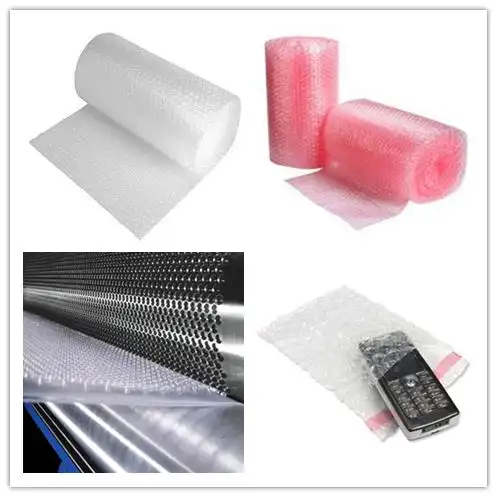

air bubble wrap film bubble bag

※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

Bubble Film Machine Working in Customer Factory

Our clients have successfully integrated the air bubble film making machine into their production lines, yielding excellent results.

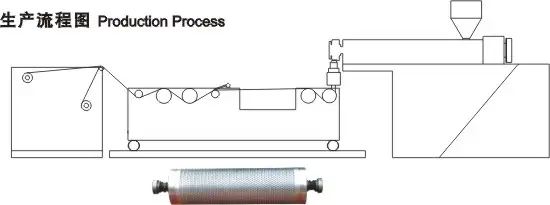

Double Layers Air Bubble Film Making Machine

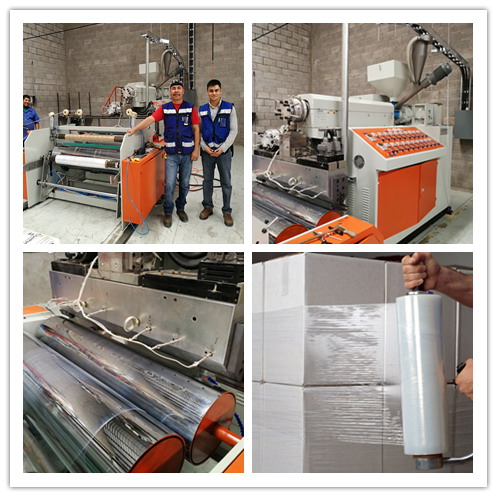

Install Strech Film Machine in Customer Factory

install machines in customers factory

Shipment

shipment of plastic bag machine

If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.

If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).



instalment service

install machines in Mexico customer factory

Machine parts supplier

Our Main parts cooperator as following brand,but standard parts all made from China.

Material supplier

How To Find Polyethelene For Stretch film machine.
Extrusion Film Extrusion use Polyethelene.

Linear Low Density Polyethylene(LLDPE):
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
